Dji O4 Ground Station
- 40 KM Max Range
- Direct FlightHub 2 Link
- Relay Mode Offline Reach
- 24/7 Unattended Ops
- IP67 & IK07 Rated
- PoE Powered
Warranty :
DJI Official 1 Year Warranty
Distributor :
DJI Authorized Dealer
Estimated Delivery :
Delivery Will be Within 7 Days
DJI O4 Ground Station

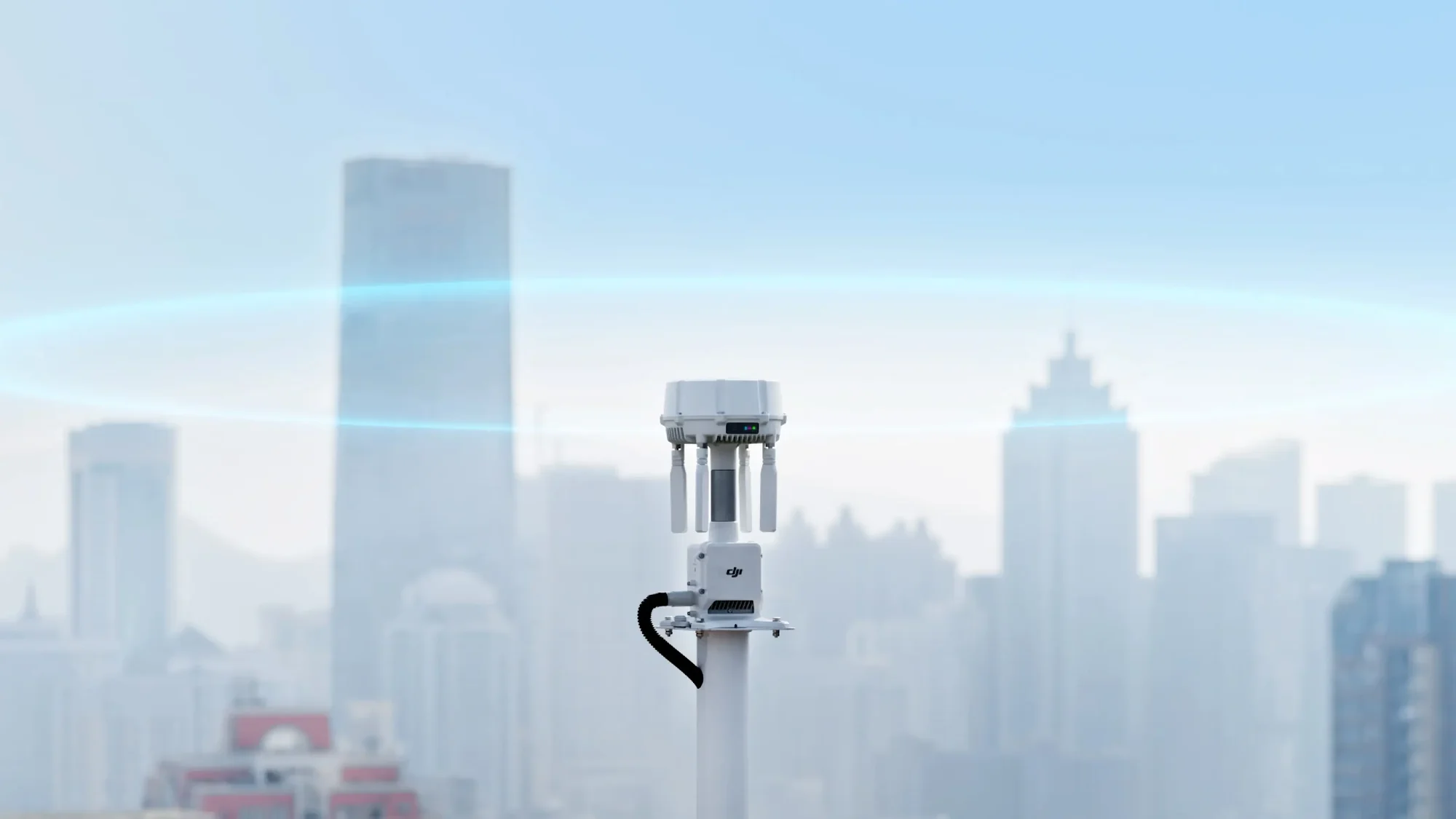

Robust Wide-Area Transmission System
Built to overcome signal limits, DJI O4 Ground Station features a 12-antenna array and automatic multi-band selection. The new Gateway Mode connects directly to FlightHub 2 to bypass deployment barriers, while Relay Mode supports offline reach. Maintenance-free by design, it drives 24/7 unattended operations.
Advanced Hardware, Robust Transmission
High-Performance RF Unit
The RF unit with high-output capabilities significantly boosts signal penetration and coverage, securing reliable links through dense urban obstructions. An optimized signal-to-noise ratio (SNR) further enhances receiver sensitivity, recovering usable signals even in complex electromagnetic environments

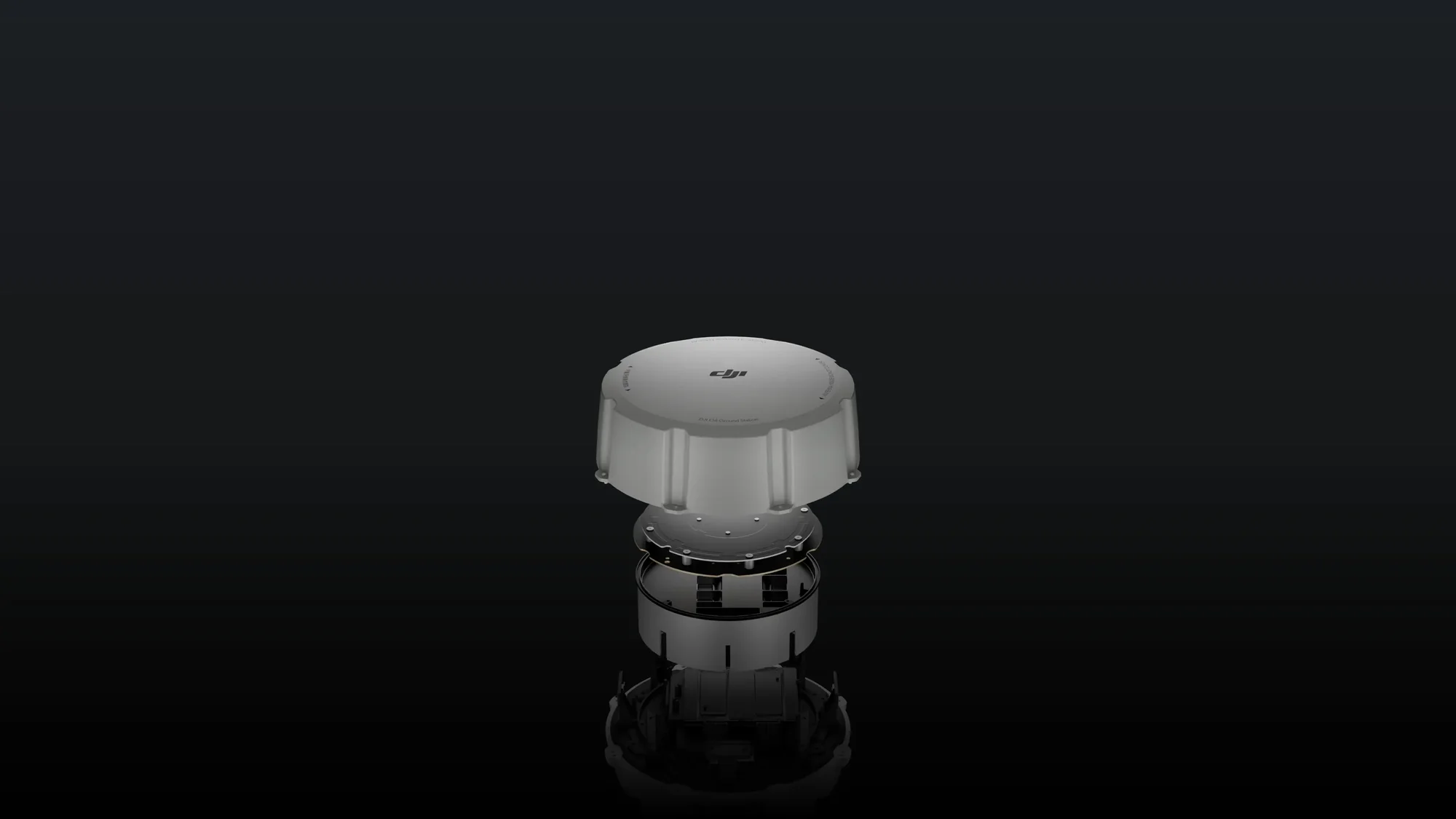

Omnidirectional High-Gain Antenna
Using 12 internal and external antennas with horizontal and vertical polarisation, O4 Ground Station delivers omnidirectional, high-gain coverage. It can continuously and stably capture signals regardless of the aircraft's position, helping maintain a seamless communication link for wide-area operations.
Automatic Multi-band Selection
To navigate congested urban RF environments, O4 Ground Station automatically shifts across sub2G, 2.4 GHz, 5.2 GHz, 5.8 GHz, and other bands to help bypass interference. This delivers a crisp, stutter-free video feed, and when paired with DJI Matrice 400, supports a transmission range of up to 40 km.
5-System, 19-Frequency GNSS
An integrated high-gain RTK module tracks 19 frequencies across five global satellite systems. Even in challenging, semi-obstructed environments like urban canyons or dense canopies, it rapidly acquires satellite signals. This provides continuous, centimeter-level positioning data, safeguarding flight operations.
Gateway Mode, Wide Coverage
Direct Network Connectivity
In Gateway Mode, O4 Ground Station connects directly to DJI FlightHub 2 via Ethernet or the DJI Cellular Dongle 2, delivering low-latency, high-bandwidth video feeds. This frees the station from DJI Dock 3's proximity constraints, allowing it to extend coverage up to 30 km.
5-System, 19-Frequency GNSS
An integrated high-gain RTK module tracks 19 frequencies across five global satellite systems. Even in challenging, semi-obstructed environments like urban canyons or dense canopies, it rapidly acquires satellite signals. This provides continuous, centimeter-level positioning data, safeguarding flight operations.

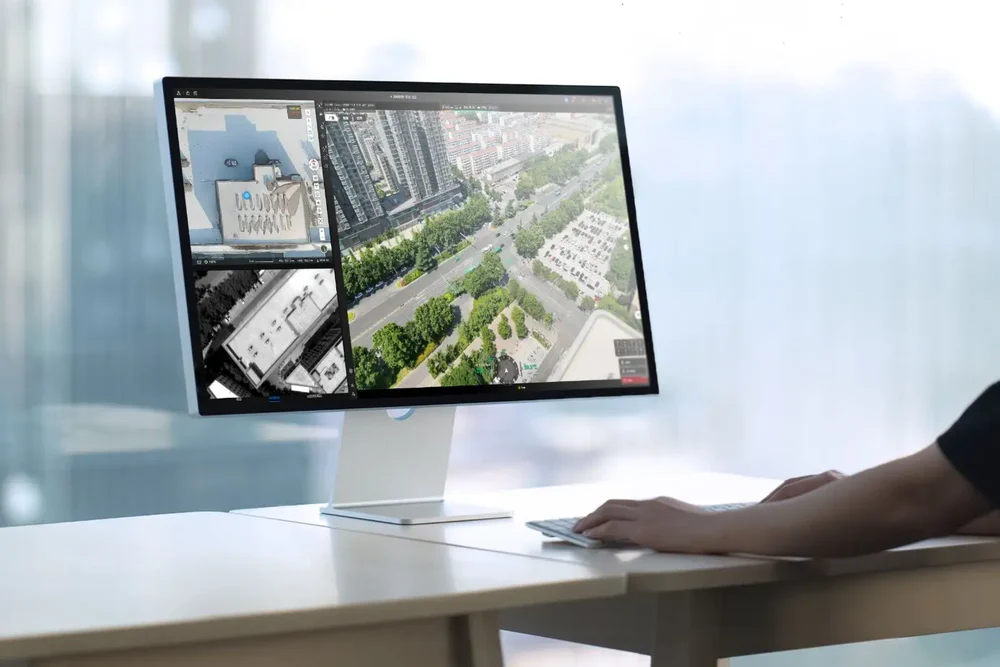

Virtual Cockpit for Agile Control
In Gateway Mode, operators can use the FlightHub 2 Virtual Cockpit to remotely control the aircraft. Within the ground station's coverage area, pilots can manually override preset routes, enabling a flexible and fast response to multi-point task requirements.
Relay Mode, Offline Reach
High-Point Setup to Clear Obstructions
O4 Ground Station inherits the functions of the D-RTK 3 Relay Fixed Deployment Version. In offline areas such as valleys or urban environments with severe signal obstruction, operators can switch to Relay Mode and position the station at a high point to extend aircraft video transmission range.
Multi-Device Rotation for Higher Utilisation
Remote controllers or DJI Docks within signal range can remotely scan and connect to O4 Ground Station. This enables fast turnarounds, as a single station can service different aircraft sequentially and improve overall hardware utilisation.
All-Weather Reliability
An IP67 rating protects against water and dust, while O4 Ground Station operates reliably in temperatures from -40° to 55° C (-40° to 131° F). This robust build supports continuous, unattended operations across harsh outdoor climates.
Specifications
2. Receiving power input from a PoE+ (or higher) power supply.
1. DJI O4 Ground Station has a built-in backup battery. In the event of a power outage, the station can continue operating for approximately 45 minutes in Gateway Mode and 30 minutes in Relay Mode.
2. Once PoE power is restored, the device will wake up and restart automatically*.
* When connected to a Type 2 or higher PoE power supply, the device supports automatic wake-up on cable insertion or power restoration.
2. Video Transmission Frequencies:D-RTK 3 Relay Fixed Deployment Version supports 2.4 GHz, 5.2 GHz, and 5.8 GHz. DJI O4 Ground Station adds sub2G band support**.
3. Additional Features:DJI O4 Ground Station supports a smart low-power mode. When no aircraft is connected, standby power consumption is as low as 7 W***. It also supports connectivity with standard IP cameras (ONVIF and GB/T 28181 protocols) and third-party devices developed based on the ESDK 2.0.
* Gateway Mode is compatible with DJI Dock 3. Relay Mode is compatible with DJI Dock 3, Matrice 400, Matrice 4E, Matrice 4T, and Matrice 4D/4TD (DJI RC Plus 2 Enterprise). Relay Mode is unavailable in certain countries or regions; check local laws and regulations for more information.
** Sub2G band support and multi-band auto-switching are only available when using DJI O4 Ground Station with Matrice 400. These features are not available in certain countries or regions. Check local laws and regulations for more information.
*** 7 W refers to the power consumption of DJI O4 Ground Station only. When powered via PoE++, the actual total power draw, including that of the power supply itself, will be higher.
