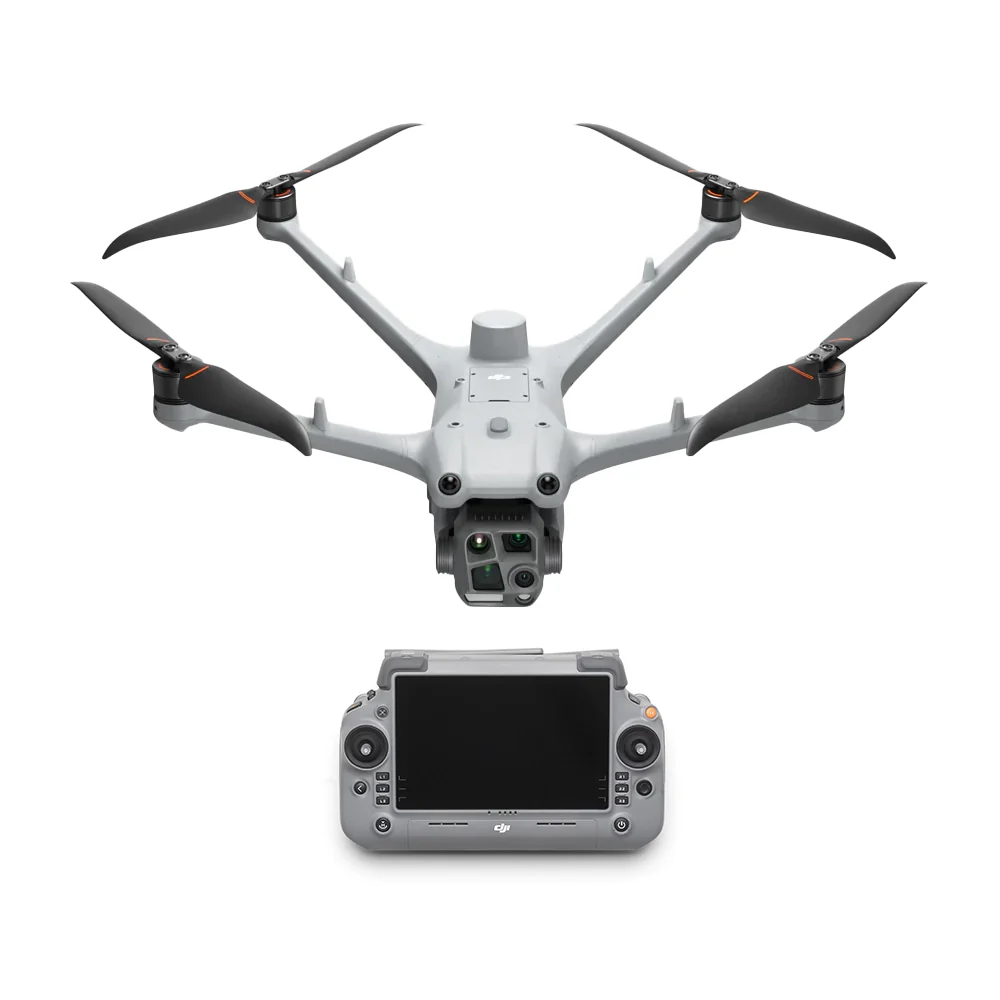

DJI Matrice 4D Drone Standalone Combo
- Extended Flight, IP55 Shield
- Seamless Airborne Relay
- Obstacle Sensing for Safety
- Smart Features for Efficiency
- Excels in Low Light
- 1-Year DJI Care Enterprise Plus
Warranty :
DJI Official 1 Year Warranty
Distributor :
DJI Authorized Dealer
Estimated Delivery :
Delivery Will be Within 7 Days
DJI Matrice 4D
Rise to Any Challenge
High-Performance Drones
The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

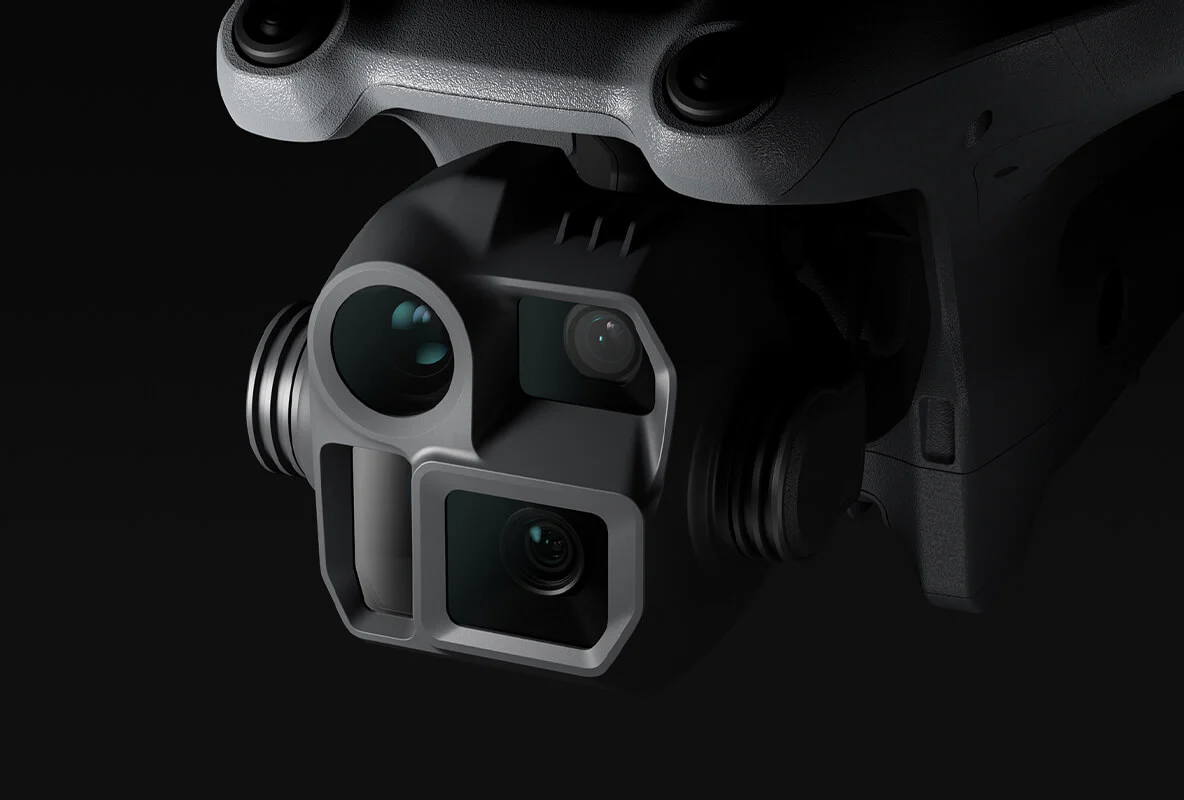

DJI Matrice 4D
Wide-Angle Camera
4/3 CMOS
20MP Effective Pixels
f/2.8-f/11
24mm Format Equivalent
Mechanical Shutter
Medium Tele Camera
1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent
Laser Range Finder
Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D)
DJI Matrice 4TD
Wide-Angle Camera
1/1.3-inch CMOS
48MP Effective Pixels
f/1.7
24mm Format Equivalent
Medium Tele Camera
1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent
Laser Range Finder
Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D)
NIR Auxiliary Light
6° FOV, 100m [10] Illumination Distance
Infrared Thermal Camera
640×512 Resolution
f/1.0
53mm Format Equivalent
Uncooled VOx Microbolometer
Supports UHR Infrared Image mode
Longer Flight Time, Robust Protection
When fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. At a radius of 10 km, these drones provide 18 minutes of operation. Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.
54 Minute
Forward Flying
47 Minute
Hovering
IP55
Protection

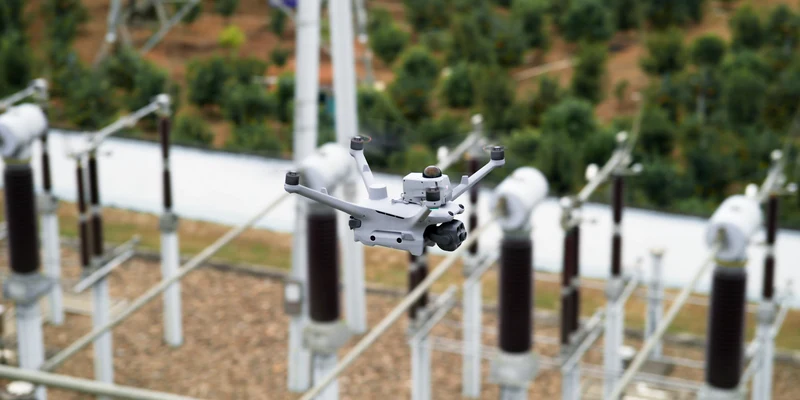

Obstacle Sensing for Safe Operation

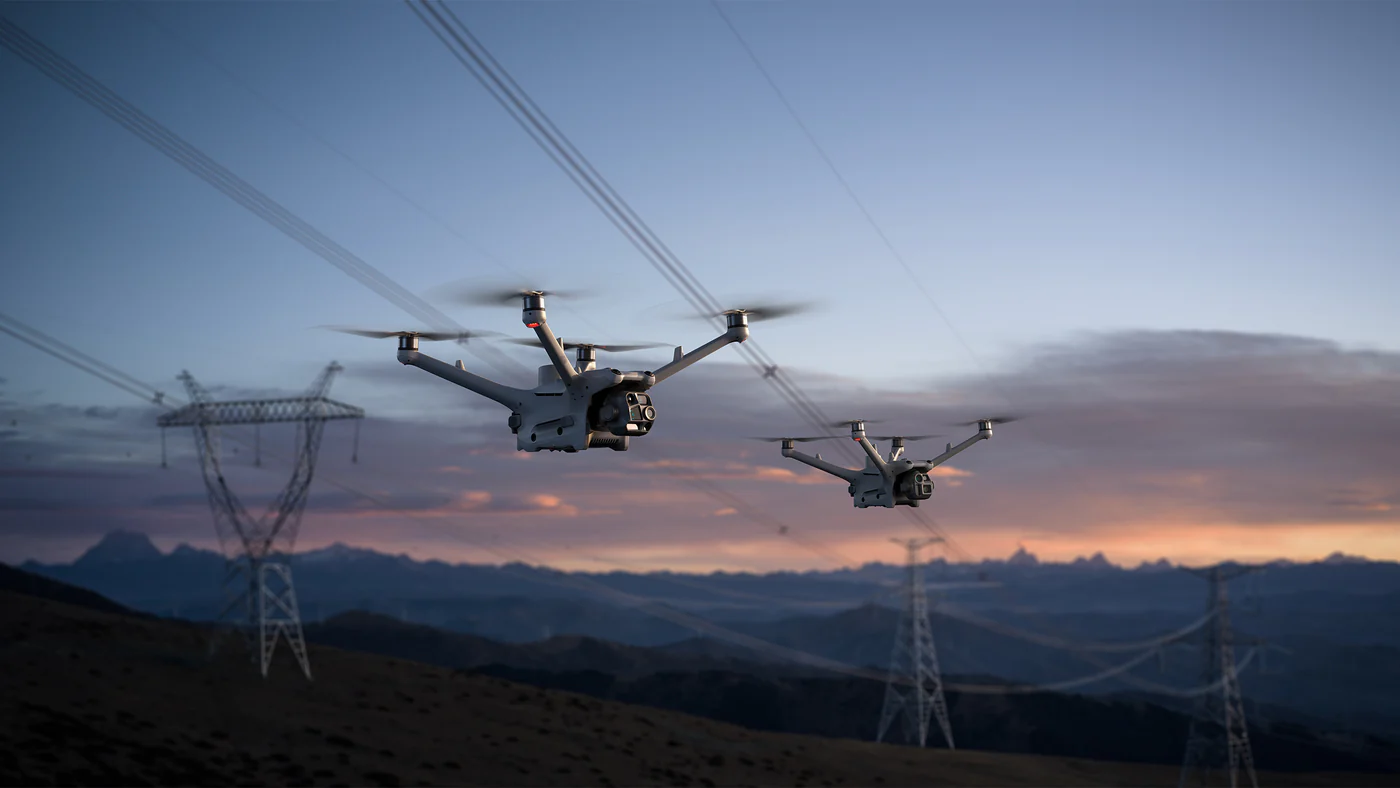

The Obstacle Sensing Module [4] for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.
Excels in Low-Light Environments
Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing visual low-light positioning and obstacle sensing capabilities. The new Night Scene mode offers full-color night vision. Matrice 4TD additionally provides IR-Cut Filter feature for black-and-white night vision and 24/7 operations, as well as a new NIR auxiliary light that can cover distances up to 100 m.
Matrice 4TD's infrared thermal camera supports the UHR Infrared Image mode with image resolutions up to 1280 × 1024 and a High-Res mode for detailed temperature readings.
Clear Vision and Stable Images

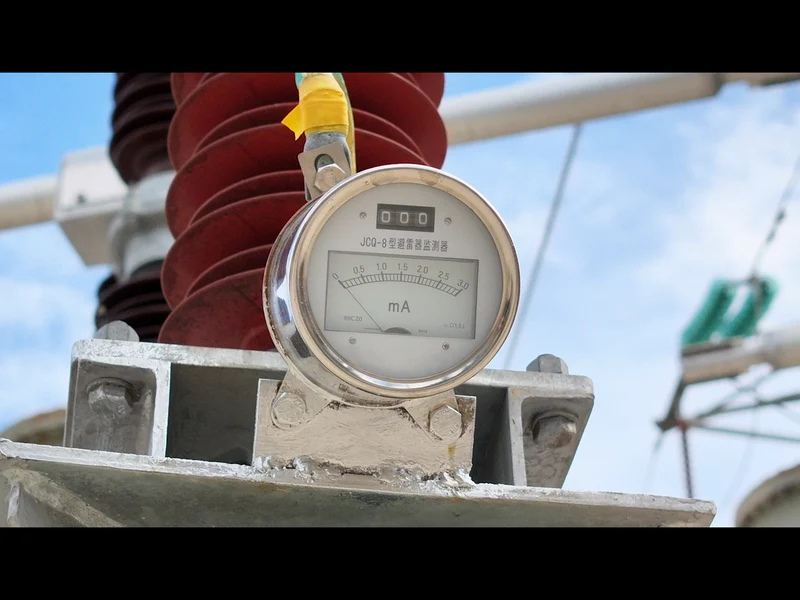

Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilisation. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations. The 48 MP tele camera captures details, like signs, from up to 250 m away. When using Matrice 4TD's tele camera as the aircraft is hovering in a windless environment, the gimbal can tilt upwards by 80 degrees, making bridge underside defects clearly visible. Upgraded stabilisation keeps foreground subjects clear during telephoto shots at 10x zoom or higher.
High-Precision Surveying
Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, and real-time terrain following to meet various mapping requirements. DJI FlightHub 2 has been upgraded for Matrice 4D/4TD operations. This upgrade introduces a range of flight route planning options, including Smart 3D Capture routes [5], geometric routes, and slope routes, enhancing efficiency while ensuring detailed modeling.
Seamless Airborne Relay for Mountainous Terrains
Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, ensuring smooth video transmission without a 4G signal or in obstructed conditions. This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.
DJI FlightHub 2 Intelligent Features

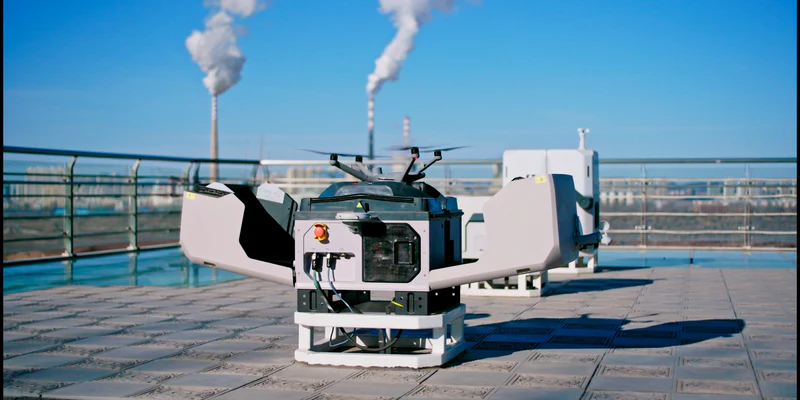

When paired with DJI FlightHub 2, Dock 3 greatly enhances the intelligence and efficiency of remote operations.
Intelligent Flight and Control

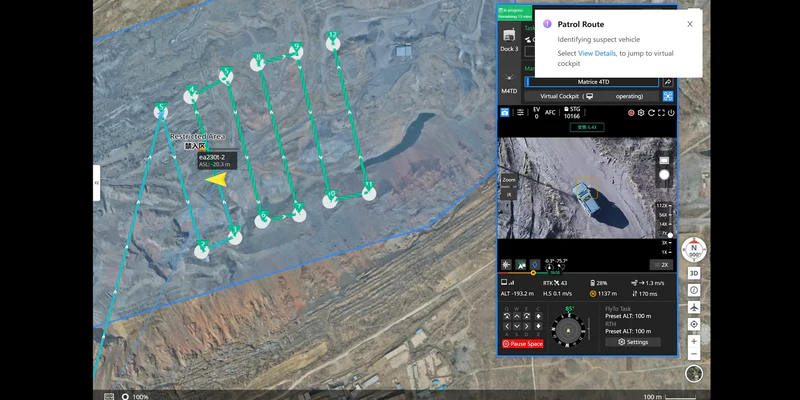

Automated Routes
The new automated flight route is useful across various scenarios, including public safety and inspections. Once a flight route is established, the drone can automatically detect and capture images or videos of subjects like vehicles and vessels and infrared temperature anomalies, and send notifications to the operators.
Intelligent Change Detection
The new intelligent change detection feature enables efficient periodical analysis of changes in an area, assisting operators in environmental protection, natural disaster relief and crack detection for more effective and informed decision making.
Smart Track
Operators can utilize the powerful auto-zoom capabilities of the Matrice 4D Series to quickly track a subject, such as a vehicle or a vessel for efficient follow-up review.
Virtual Cockpit
The Virtual Cockpit remote control interface has been significantly enhanced with the introduction of the new Mouselook feature. This enhancement allows the drone to adjusts its attitude and gimbal orientation automatically, enabling rapid and precise centering of the frame, thus achieving "point and see."
Efficient Operation
Open and Fly
Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 1 km away and at 100m height within 100 seconds.
Low-Latency Live View
Engine upgrade significantly reduces live view latency on FlightHub 2, providing reliable support for real-time decision-making.
Transmit While Flying
In emergency scenarios, real-time data transmission and rapid modeling can be achieved during flight. Data transfer can be completed immediately upon landing,and a rough model can be quickly generated via the cloud, significantly enhancing efficiency.
Security Compliance
FlightHub 2 Custom Permission Management
FlightHub 2 has upgraded its permission management, allowing users to configure management permissions according to actual needs.
FightHub 2 Achieves ISO 27001 Certification
FlightHub 2 uploads, stores and manages data on Amazon Web Services (AWS) cloud servers, which are also ISO/IEC 27001 certified, ensuring secure and compliant data processing.
4G Dongle Private Deployment
With DJI Cellular Dongle 2, the aircraft can connect to 4G networks. In complex operational environments, the 4G network works in tandem with O4+ video transmission system to ensure a stable transmission and enhance flight safety. 4G enhanced video transmission service can be privately deployed and used in conjunction with the FlightHub 2 on-premises version to further enhance the stability and security of data transmission.
Specifications
What's Included
DJI Matrice 4D
x 1

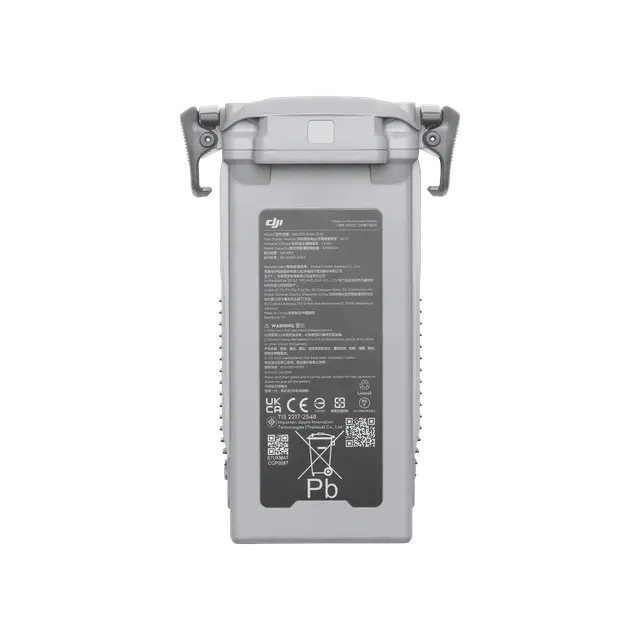

DJI Matrice 4D Series Battery
x 1
DJI RC Plus 2 Enterprise
x 1

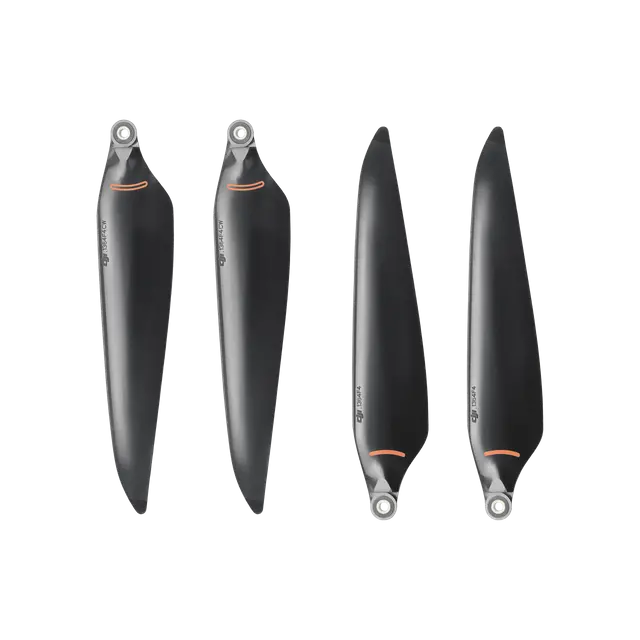

DJI Matrice 4D Series Low-Noise Anti-Ice Spare Propellers (Pair)
x 1
DJI 240W Power Adapter
x 1
DJI Matrice 4D Series 240W Charging Hub
x 1

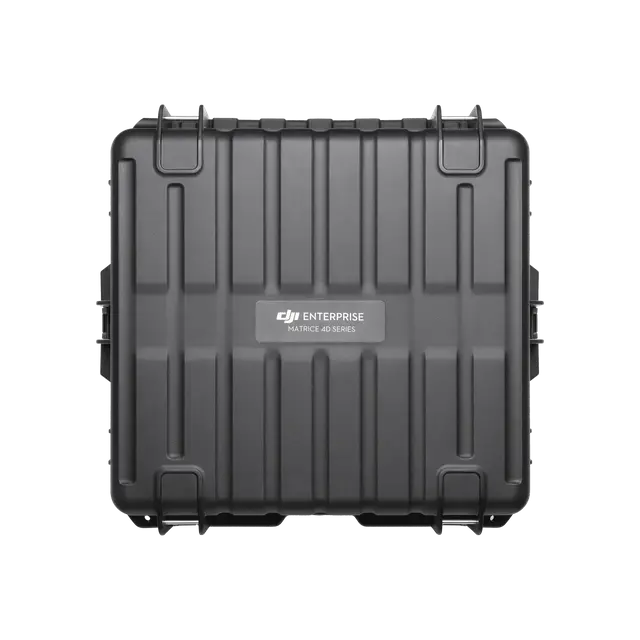

DJI Matrice 4D Series Storage Case
x 1
Screwdriver Set
x 1
Screwdriver (for Remote Controller)
x 1
USB-C to USB-C Data Cable
x 1

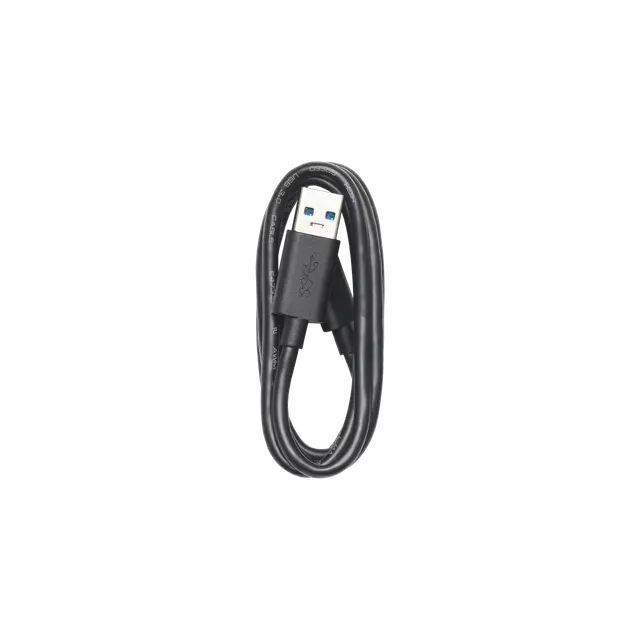

USB-A to USB-C Data Cable
x 1
DJI Power Fast Charge Cable for Drones
x 1
Gimbal Protector
x 1

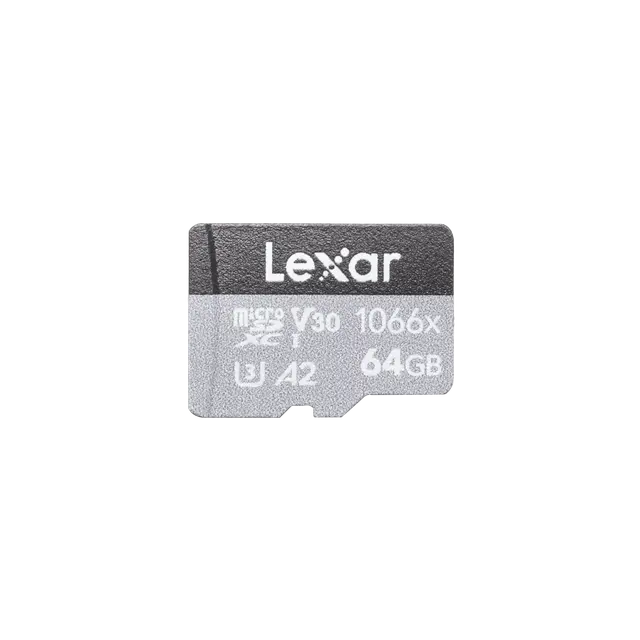

microSD Card
x 1
M2.5 Propeller Blade Screws
x 6
Rubber Washers (for Propellers)
x 6
M1.6 Aircraft Cellular Module Compartment Screws
x 4

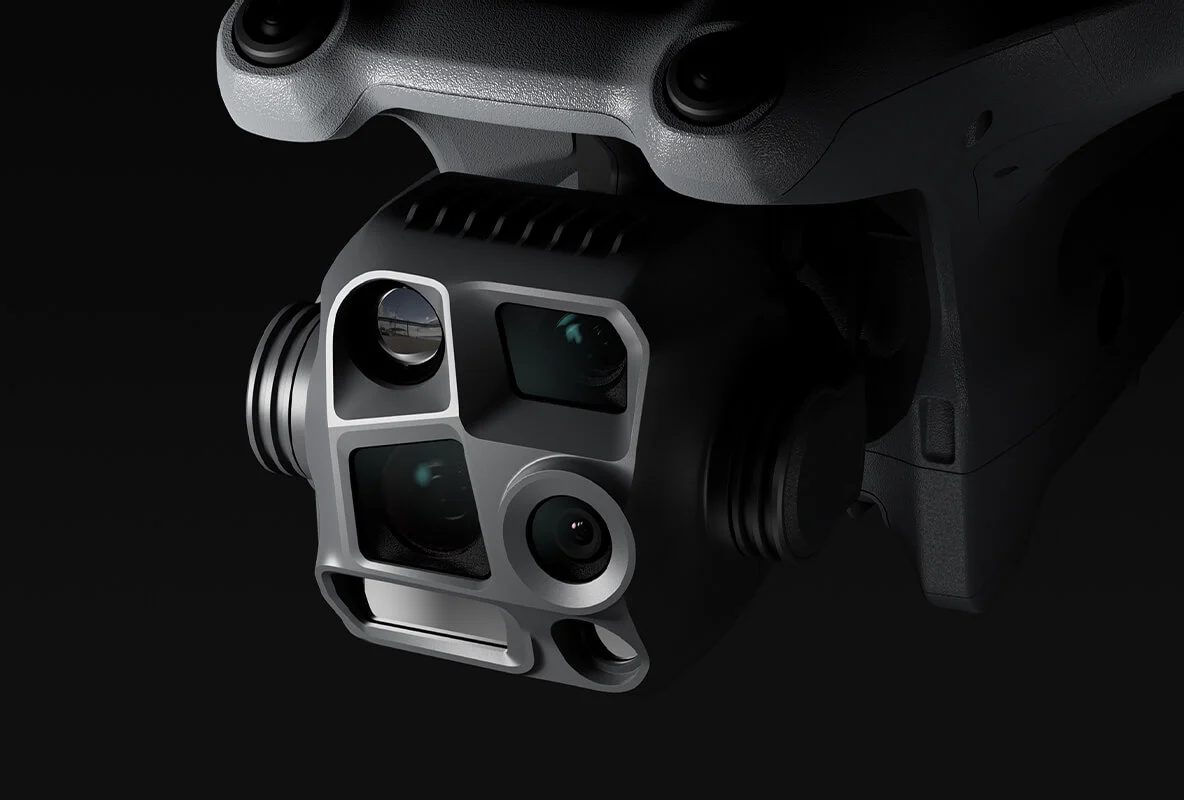

DJI Matrice 4D is equipped with a 4/3 CMOS 20MP wide-angle camera, a 1/1.3-inch CMOS 48MP medium tele camera, a 1/1.5-inch CMOS 48MP tele camera, and a laser range finder, providing powerful imaging capabilities.
DJI Matrice 4TD is equipped with a 1/1.3-inch CMOS 48MP wide-angle camera, a 1/1.3-inch CMOS 48MP medium tele camera, a 1/1.5-inch CMOS 48MP tele camera, a infrared thermal camera, an NIR auxiliary light, and a laser range finder. It features powerful thermal imaging and low-light imaging capabilities.
1. Supports IP55 protection rating.
2. Maximum flight time of 54 minutes.
3. Supports greater payload capacity.
4. Supports airborne relay, where one drone can fly high as a relay, addressing signal issues in mountainous terrains.
5. Arms of Matrice 4D Series drones are not foldable.
